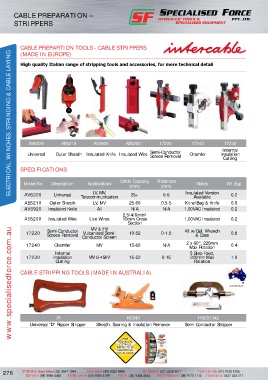

Page 286 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

CABLE PREPARATION – STRIPPERS – INTERCABLE
CABLE PREPARATION –
STRIPPERS

CABLE PREPARTION TOOLS - CABLE STRIPPERS
ELECTRICAL, WINCHES, STRINGING & CABLE LAYING
(MADE IN EUROPE)
High quality Italian range of stripping tools and accessories, for more technical detail

Av6220 AE6210 Av3920 AE6200 17220 17240 17230
Internal
Universal Outer sheath Insulated knife Insulated Wire semi-Conductor Chamfer Insulation
screen Removal
Cutting
SPECIFICATIONS

Cable Capacity Thickness
Model No Description Applications Notes Wt (kg)
(mm) (mm)
Lv, Mv,
AV6220 Universal Telecommunication 25+ 0-5 Insulated version 0.2
Available
AE6210 Outer sheath Lv, Mv 25-60 0.5-5 kit w/Bag & knife 0.9
AV3920 Insulated knife All N/A N/A 1,00vAC Insulated 0.2
2.5/4/6mm²
AE6200 Insulated Wire Live Wires 10mm Cross 1,00vAC Insulated 0.2
section
Mv & Hv
www.specialisedforce.com.au
vulcanised semi-
17220 semi-Conductor Conductor screen 10-52 0-1.5 kit w/Gel, Wrench 0.8
& Case
screen Removal
17240 Chamfer Mv 15-60 N/A 2 x 60°, 220mm 0.4
Max Rotation
Internal 5 step Feed,
17230 Insulation Mv 6-45kv 15-52 0-15 220mm Max 1.0
Cutting Rotation
CABLE STRIPPING TOOLS (MADE IN AUSTRALIA)

Australian Made

IR HCs40 HsCs1342
Universal “D” Ripper stripper sheath, scoring & Insulation Remover semi-Conductor stripper

FOR
TECHNICAL
DETAILS
REFER TO SF
ELECTRICAL
CATALOGUE
