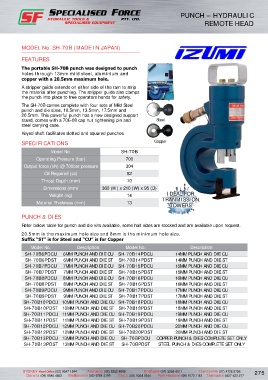

Page 285 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

PUNCH – HYDRAULIC REMOTE HEAD – IZUMI
PUNCH – HYDRAULIC
REMOTE HEAD

MODEL No. SH-70B (MADE IN JAPAN)

FEATURES

The portable SH-70B punch was designed to punch
holes through 13mm mild steel, aluminium and
copper with a 20.5mm maximum hole.
A stripper guide extends on either side of the ram to strip
the material after punching. The stripper guide also clamps
the punch into place to free operators hands for safety.
The sH-70B comes complete with four sets of Mild steel
punch and die sizes, 10.5mm, 13.5mm, 17.5mm and
20.5mm. This powerful punch has a new designed support
stand, comes with a 70E-08 cap nut tightening pin and steel
steel carrying case.
keyed shaft facilitates slotted and squared punches.

SPECIFICATIONS Copper
Model No. SH-70B
Operating Pressure (bar) 700
Output force (kN) @ 700bar pressure 304
Oil Required (cc) 82
Throat Depth (mm) 70
Dimensions (mm) 360 (H ) x 210 (W) x 95 (D)
Weight (kg) 14 IDEAL FOR
Material Thickness (mm) 13 TRANMISSION
TOWERS

PUNCH & DIES

Refer below table for punch and die kits available, some half sizes are stocked and are available upon request.
20.5mm is the maximum hole size and 6mm is the minimum hole size.
Suffix “ST” is for Steel and “CU” is for Copper

Model No. Description Model No. Description
SH-70B6PDCU 6MM PUNCH AND DIE CU SH-70B14PDCU 14MM PUNCH AND DIE CU
SH-70B6PDST 6MM PUNCH AND DIE sT SH-70B14PDST 14MM PUNCH AND DIE sT
SH-70B7PDCU 7MM PUNCH AND DIE CU SH-70B15PDCU 15MM PUNCH AND DIE CU
SH-70B7PDST 7MM PUNCH AND DIE sT SH-70B15PDST 15MM PUNCH AND DIE sT
SH-70B8PDCU 8MM PUNCH AND DIE CU SH-70B16PDCU 16MM PUNCH AND DIE CU
SH-70B8PDST 8MM PUNCH AND DIE sT SH-70B16PDST 16MM PUNCH AND DIE sT
SH-70B9PDCU 9MM PUNCH AND DIE CU SH-70B17PDCU 17MM PUNCH AND DIE CU
SH-70B9PDST 9MM PUNCH AND DIE sT SH-70B17PDST 17MM PUNCH AND DIE sT
SH-70B10PDCU 10MM PUNCH AND DIE CU SH-70B18PDCU 18MM PUNCH AND DIE CU
SH-70B10PDST 10MM PUNCH AND DIE sT SH-70B18PDST 18MM PUNCH AND DIE sT
SH-70B11PDCU 11MM PUNCH AND DIE CU SH-70B19PDCU 19MM PUNCH AND DIE CU
SH-70B11PDST 11MM PUNCH AND DIE sT SH-70B19PDST 19MM PUNCH AND DIE sT
SH-70B12PDCU 12MM PUNCH AND DIE CU SH-70B20PDCU 20MM PUNCH AND DIE CU
SH-70B12PDST 12MM PUNCH AND DIE sT SH-70B20PDST 20MM PUNCH AND DIE sT
SH-70B13PDCU 13MM PUNCH AND DIE CU SH-70BPDCU COPPER PUNCH & DIEs COMPLETE sET ONLY
SH-70B13PDST 13MM PUNCH AND DIE sT SH-70BPDST sTEEL PUNCH & DIEs COMPLETE sET ONLY
