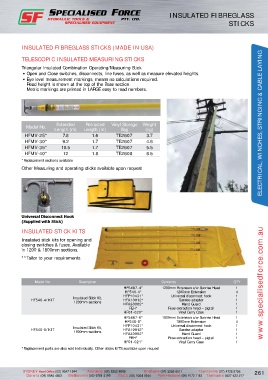

Page 271 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

INSULATED FIBREGLASS STICKS
INSULATED FIBREGLASS
STICKS

INSULATED FIBREGLASS STICKS (MADE IN USA)

TELESCOPIC INSULATED MEASURING STICKS

Triangular Insulated Combination Operating/Measuring stick.
• Open and Close switches, disconnects, line fuses, as well as measure elevated heights.
• Eye level measurement markings, means no calculations required.
Read height is shown at the top of the Base section.
Metric markings are printed in LARGE easy to read numbers.

Retracted
Extended
Model No. Length (m) Length (m) vinyl storage Weight ELECTRICAL, WINCHES, STRINGING & CABLE LAYING
(kg)
Bag
HFMV-25* 7.8 1.6 TE2607 3.7
HFMV-30* 9.2 1.7 TE2607 4.6
HFMV-35* 10.5 1.7 TE2607 5.5
HFMV-40* 12 1.8 TE2608 6.5
*Replacement sections available
Other Measuring and operating sticks available upon request

Universal Disconnect Hook
(Supplied with Stick)

INSULATED STICK KITS

Insulated stick kits for opening and
closing switches & fuses. Available
in 1200 & 1800mm sections.

**Tailor to your requirements

Model No. Description Contents qTY www.specialisedforce.com.au
HF5467-4* 1200mm Extension c/w sunrise Head 1
HF546-4* 1200mm Extension 4
HFP10431* Universal disconnect hook 1
HF546-4/KIT Insulated stick kit, HFA10012* sunrise adaptor 1
1200mm sections HFA30002* Hand Guard 1
FEH* Fuse extraction head – pigtail 1
HF01-020* vinyl Carry Case 1
HF5467-6* 1800mm Extension c/w sunrise Head 1
HF546-6* 1800mm Extension 4
Insulated stick kit, HFP10431* Universal disconnect hook 1
HF546-6/KIT HFA10012* sunrise adaptor 1
1800mm sections HFA30002* Hand Guard 1
FEH* Fuse extraction head – pigtail 1
HF01-021* vinyl Carry Case 1
*Replacement parts are also sold individually. Other sticks kITs available upon request
