WINCH – CAPSTAN, PORTABLE

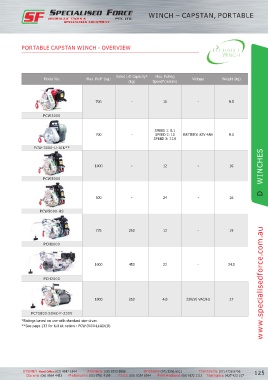

PORTABLE CAPSTAN WINCH - OVERVIEW
Rated Lift Capacity* Max. Pulling
Model No. Max. Pull* (kg) Voltage Weight (kg)
(kg) Speed*(m/min)
700 - 10 - 9.5
PCW3000
SPEED 1: 8.1
700 - SPEED 2: 10 BATTERY: 82V 4AH 9.5
SPEED 3: 11.6
PCW-3000-Li-AIK**
D WINCHES
1000 - 12 - 16
PCW5000
500 - 24 - 16
PCW5000-HS
775 250 12 - 19
PCH1000
1000 450 22 - 34.5
PCH2000 www.specialisedforce.com.au
1000 250 4.8 230/50 VAC/Hz 27
PCT1800-50HZ-P-230V
*Ratings based on use with standard size drum.
**See page 133 for full kit option - PCW-3000-Li-AIK(B)
