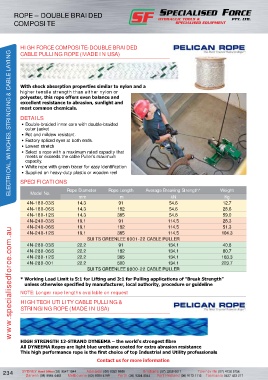

Page 244 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-16-01-19

ROPE – DOUBLE BRAIDED COMPOSITE – PELICAN ROPE
ROPE – DOUBLE BRAIDED
COMPOSITE

HIGH FORCE COMPOSITE-DOUBLE BRAIDED
CABLE PULLING ROPE (MADE IN USA)
ELECTRICAL, WINCHES, STRINGING & CABLE LAYING

With shock absorption properties similar to nylon and a
higher tensile strength than either nylon or
polyester, this rope offers even balance and
excellent resistance to abrasion, sunlight and
most common chemicals.

DETAILS
• Double-braided inner core with double-braided
outer jacket
• Rot and mildew resistant.
• Factory spliced eyes at both ends.
• Lowest stretch
• select a rope with a maximum rated capacity that
meets or exceeds the cable Puller’s maximum
capacity.
• White rope with green tracer for easy identification
• supplied on heavy-duty plastic or wooden reel
SPECIFICATIONS

Rope Diameter Rope Length Average Breaking strength* Weight
Model No.
mm m kN kg
4N-180-03S 14.3 91 54.6 12.7
4N-180-06S 14.3 182 54.6 28.6
4N-180-12S 14.3 365 54.6 59.0
4N-240-03S 19.1 91 114.5 26.3
4N-240-06S 19.1 182 114.5 51.3
www.specialisedforce.com.au
4N-240-12S 19.1 365 114.5 104.3
SUITS GREENLEE 6001-22 CABLE PULLER
4N-280-03S 22.2 91 134.1 40.8
4N-280-06S 22.2 182 134.1 80.7
4N-280-12S 22.2 365 134.1 163.3
4N-280-001 22.2 500 134.1 223.7
SUITS GREENLEE 6800-22 CABLE PULLER
* Working Load Limit is 5:1 for Lifting and 3:1 for Pulling applications of “Break Strength”
unless otherwise specified by manufacturer, local authority, procedure or guideline
NOTE: Longer rope lengths available on request

HIGH TECH UTILITY CABLE PULLING &
STRINGING ROPE (MADE IN USA)

HIGH STRENGTH 12-STRAND DYNEEMA – the world’s strongest fibre
All DYNEEMA Ropes are light blue urethane coated for extra abrasion resistance
This high performance rope is the first choice of top Industrial and Utility professionals
Contact us for more information
