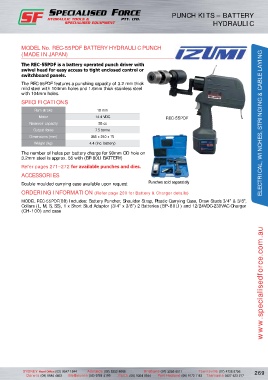

Page 279 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

PUNCH KITS – BATTERY HYDRAULIC – IZUMI
PUNCH KITS – BATTERY
HYDRAULIC

MODEL No. REC-55PDF BATTERY HYDRAULIC PUNCH
(MADE IN JAPAN)

The REC-55PDF is a battery operated punch driver with
swivel head for easy access to tight enclosed control or
switchboard panels.
The REC-55PDF features a punching capacity of 3.2 mm thick
mild steel with 104mm holes and 1.6mm thick stainless steel
with 104mm holes.
SPECIFICATIONS

Ram stroke 18 mm
Motor 14.4 vDC REC-55PDF
Reservoir capacity 55 cc ELECTRICAL, WINCHES, STRINGING & CABLE LAYING
Output force 7.5 tonne
Dimensions (mm) 355 x 240 x 75
Weight (kg) 4.4 (inc. battery)

The number of holes per battery charge for 90mm OD hole on
3.2mm steel is approx. 55 with (BP-80LI BATTERY)
Refer pages 271–272 for available punches and dies.

ACCESSORIES
Double moulded carrying case available upon request Punches sold separately

ORDERING INFORMATION (Refer page 200 for Battery & Charger details)
MODEL REC-55PDF(BB) Includes: Battery Puncher, shoulder strap, Plastic Carrying Case, Draw studs 3/4” & 3/8”,
Collars (L, M, s, ss), 1 x short stud Adaptor (3/4” x 3/8”) 2 Batteries (BP-80LI) and 12/24vDC-230vAC Charger
(CH-100) and case www.specialisedforce.com.au
