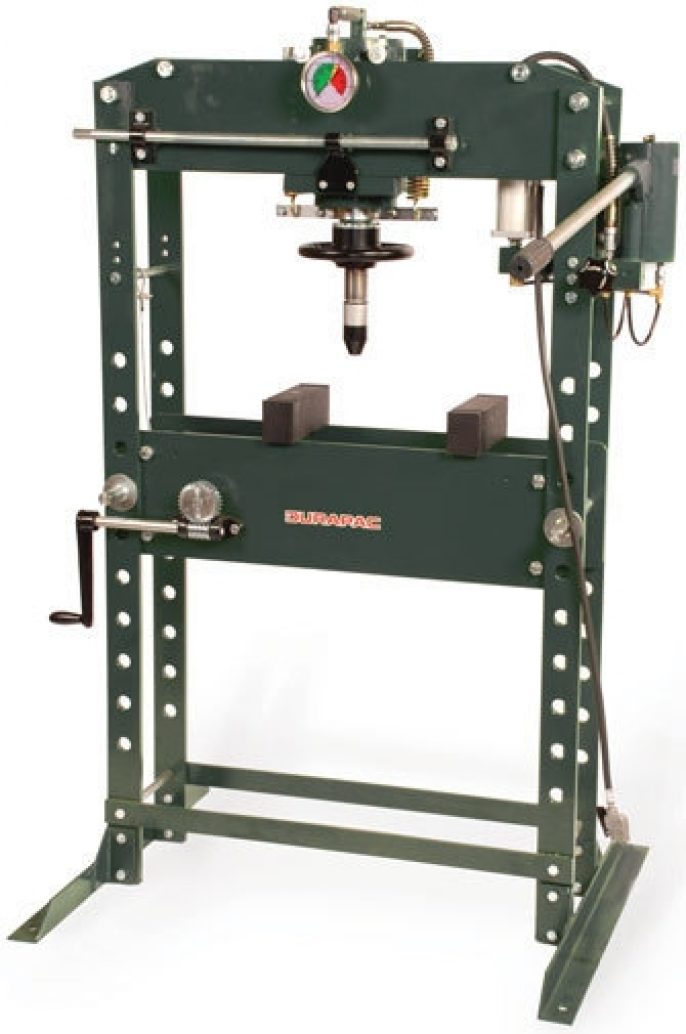

Durapac HP-35A 35T H-Frame Press

Durapac HP-35A 35T H-Frame Press

The HP-35A 35 Tonne H-Frame press is an industrial-duty unit ideally suited for pressing, forming, and bending jobs in any workshop. It features an air-driven and manual pump, movable work head, force gauge, and v-blocks.

  • Spring return cylinder with two heavy-duty return springs
  • Air-driven and manual pump are both incorporated in the press
  • Handwheel and threaded cylinder allows for rapid adjustment of cylinder extension
  • V blocks included in standard supply
  • Table height adjustment by mechanical screw and gear
  • Rolling head design allows movement and locking of the cylinder from side to side
  • Force gauge in tons with 3 colour scale
  • Steel construction for maximum strength

Specifications

Model No.Capacity (ton)

Pump Type

Pressure Rating (bar)

Air Pressure
Range (bar)

Output Flow Rate (cc/min)

Net Weight (kg)

HP-35A35Air & Manual3607-10750222


$3,900.00 (ex GST)

We have 4 left in stock.

Email us about this product
Or call Brisbane on (07) 3256 6011
